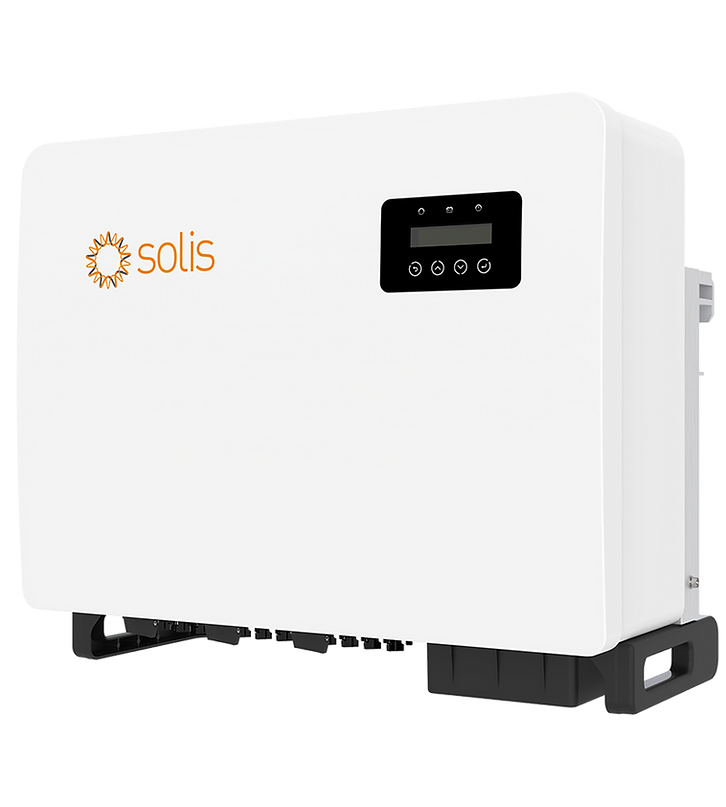

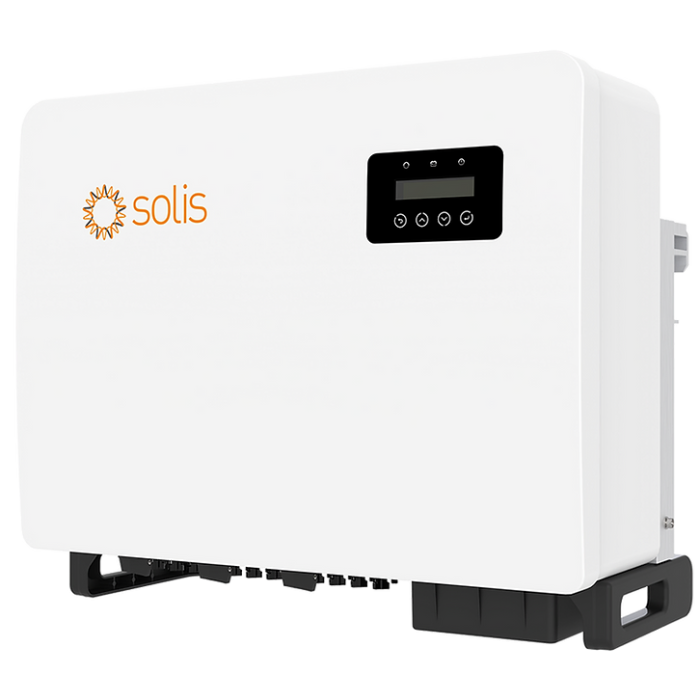

Solis 60kW S5 3 Phase 6x MPPT – DC Supply
27 people are viewing this right now
19 products sold in last 16 hours
Selling fast! Over 16 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SOL-S5-GC60K-DC Inverters – Main Units
- Rating: 60,000W
- Phases: 3
- Max. efficiency of 98.7%Â
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range – Ultra low start-up voltage of 195V and max PV input voltage of 1100V
- Max PV DC Power of 90kW
- 32A input per MPPT, 16A input for each PV string
- Maximum output power of 66kWÂ
- 6 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated and C5 Anti-Corrosion Level
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- DC reverse-polarity protection
- Supports PLC GPRS WiFi communication with less wiring and reduced installation costs
- 5-year standard warranty
-
- Supplier Part No: S5-GC60K
- Weight: 56 kg
- Rated Power: 60,000 W
- Min PPT Voltage: 195 V
- Max PPT Voltage: 1,000 V
- DC Startup Voltage: 195 V
- DC Shutdown Voltage: 180 V
- Max Input Voltage: 1,100 V
- Max DC Power: 90,000 W
- Max AC Power (5 Minutes): 66,000 W
- Surge AC Power (1 Second): 66,000 W
- Max DC Current: 192 A
- Max DC Inputs: 12
- Has DC Fuses: 0
- Connector: MC4 Â
- Included Connectors: 24
- Euro Efficiency: 98.4 %
- Transformer: None
- MPPT Quantity : 6
- Has Integrated DC Switch: Yes
- Warranty: 5 years
Register on SolisCloud, to support remote upgrade and control.
