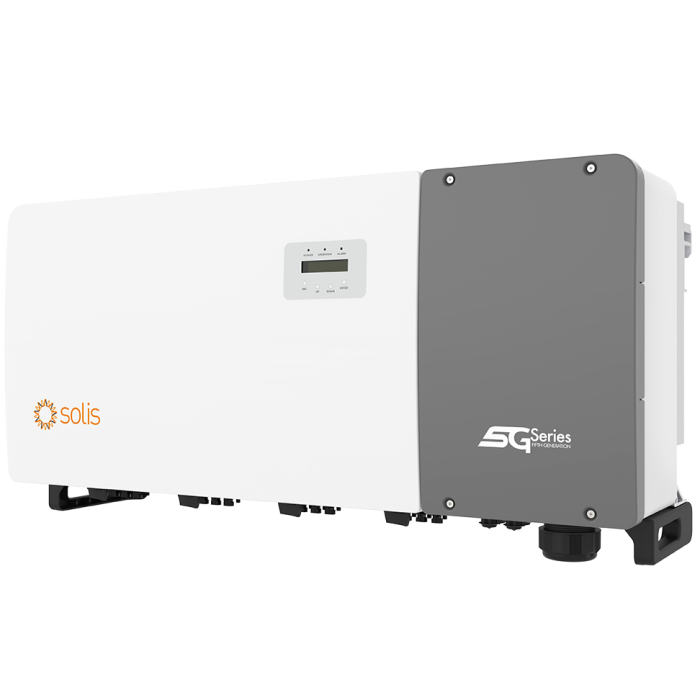

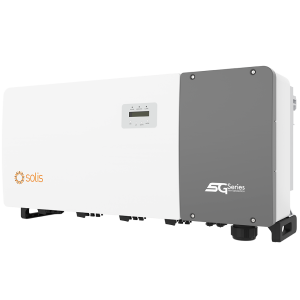

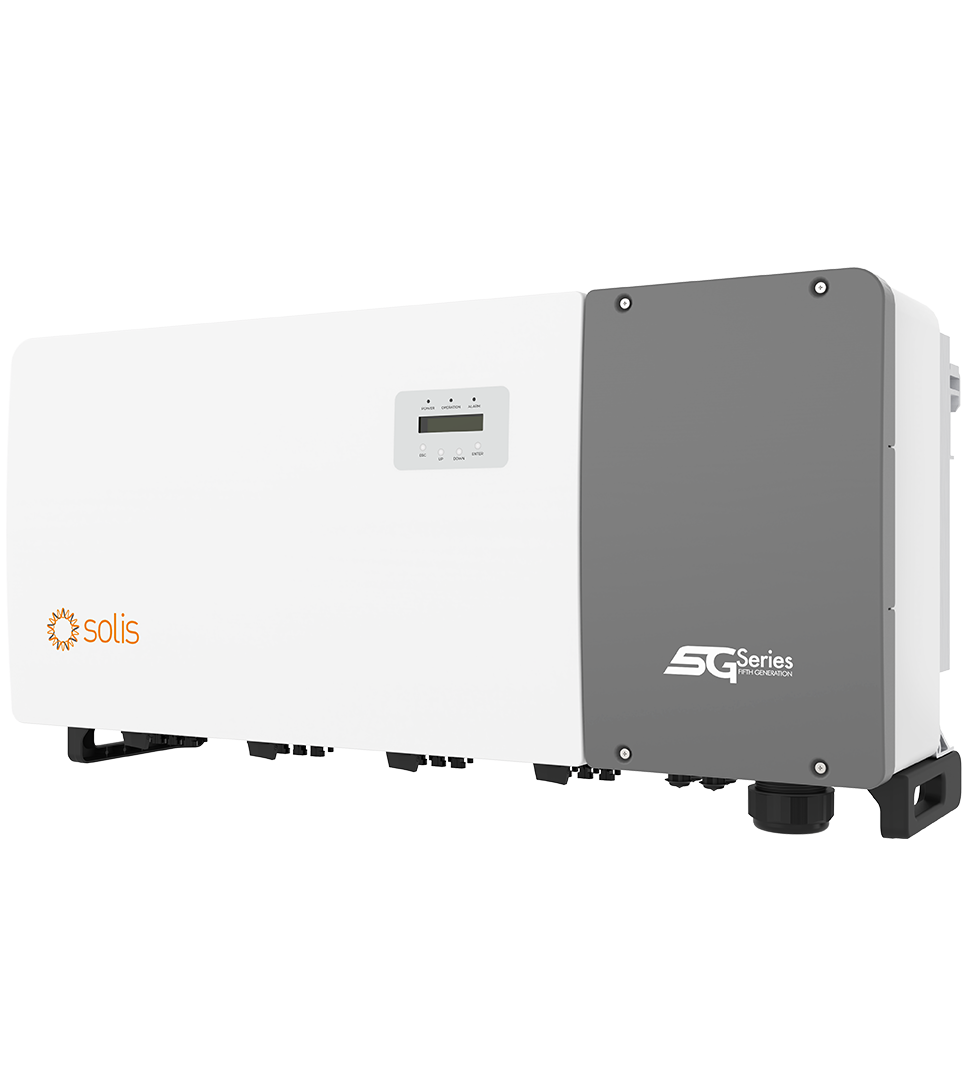

Solis 5G PRO 100kW 3PH Inverter with 8x MPPT Fashion
29 people are viewing this right now
14 products sold in last 7 hours
Selling fast! Over 18 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SOL-100K-5G-PRO-DC Inverters – Main Units
- Rating: 100,000W
- Phases: 3
- 8 MPPTs, max. efficiency 98.5%
- 150% DC AC ratio
- Compatible with bifacial modules
- IP66
- AFCI protection, proactively reduces fire risk
- Globally recognised branded componentry for longer life
- Night SVG functionÂ
- Intelligent string monitoring, smart I-V curve scan
- Remote firmware upgrade with simple operation
- Power line communication (PLC) (optional)
- DC side supports Y connector
- Supports aluminium wire access to reduce cost
-
- Pro 5G Solis 100kW come with integrated DC isolators but not the AC option –Â Â AC Isolator is required
-
- Supplier Part No: Solis-100K-5G-PRO
- Weight: 93 kg
- Rated Power: 100,000 W
- Min PPT Voltage: 160 V
- Max PPT Voltage: 1,000 V
- DC Startup Voltage: 180 V
- DC Shutdown Voltage: 160 V
- Max Input Voltage: 1,100 V
- Max DC Power: 100,000 W
- Max AC Power (5 Minutes): 100,000 W
- Surge AC Power (1 Second): 110,000 W
- Max DC Current: 272 A
- Max DC Inputs: 16
- Has DC Fuses: 0
- Connector: MC4 Â
- Included Connectors: 32
- Euro Efficiency: 98 %
- Transformer: None
- MPPT Quantity : 8
- Has Integrated DC Switch: Yes
- Warranty: 5 years
