SolaX Triple Power HS25 HS36 Battery Management System – MCS0800 Online Sale
22 people are viewing this right now
11 products sold in last 12 hours
Selling fast! 1 person has this in their cart
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

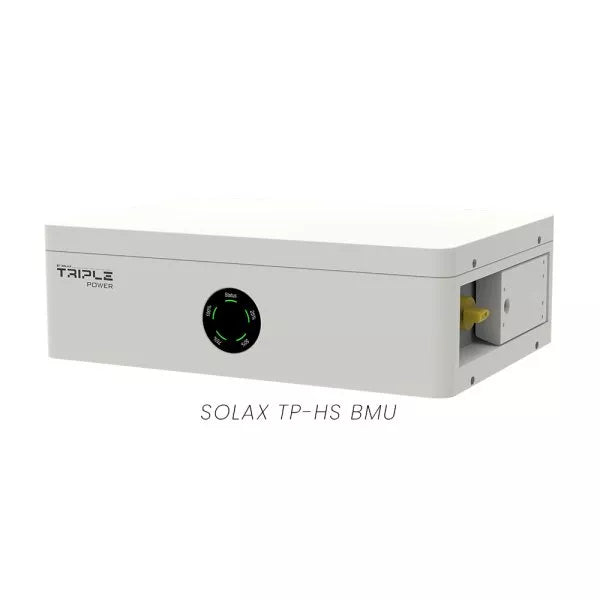

This BMU (Battery Management Unit) is for use with the TP-HS25 and TP-HS36 Battery Modules from SolaX Power. Â
This product is for the BMU and Base ONLY – batteries are not included and must be purchased separately. Compatible with TP-HS36 and TP-HS25 Batteries.Â
Battery Limits (Important)
-
Minimum Battery Requirements
- Single Phase: 2x TP-HS Batteries
-
- Three Phase: 4x TP-HS Batteries
-
-
-
Maximum Battery Limit
- Single Phase: 8x TP-HS Batteries
-
- Three Phase: 13x TP-HS Batteries
-
- X3-ULTRA: 26x TP-HS Batteries
-
-
These batteries are stackable for installation, but please note the maximum quantity is 9 units for one stack and there is a maximum of 2 stacks per inverter. Series box is required for second stack.
Included in kit:
- 1x SolaX TP-HS BMU (TBMS-MCS0800)
-
- Battery Kit Base
-
This BMU is for use with either the TP-HS25 or TP-HS36 battery modules. Â
Features of the SolaX BMU for TP-HS25 36 Batteries:
- Scalable to 47+kWh Storage Capacity
-
-
Easy Installation – Stackable battery modules & pre-wired cables
-
- Unique Heating Technology for enhanced performance in lower temperature
-
-
IP65Â Protection Level
-
- Soft Start Protection
-
- Remote fault diagnosis, upgrade and maintenance
-
- Compact Design
-
- 10-year Warranty
-
-
Dimensions (LxWxH) – 510 x 365 x 157mm
-
-
Weight – 10kg
-
Product Code: TBMS-MCS0800
