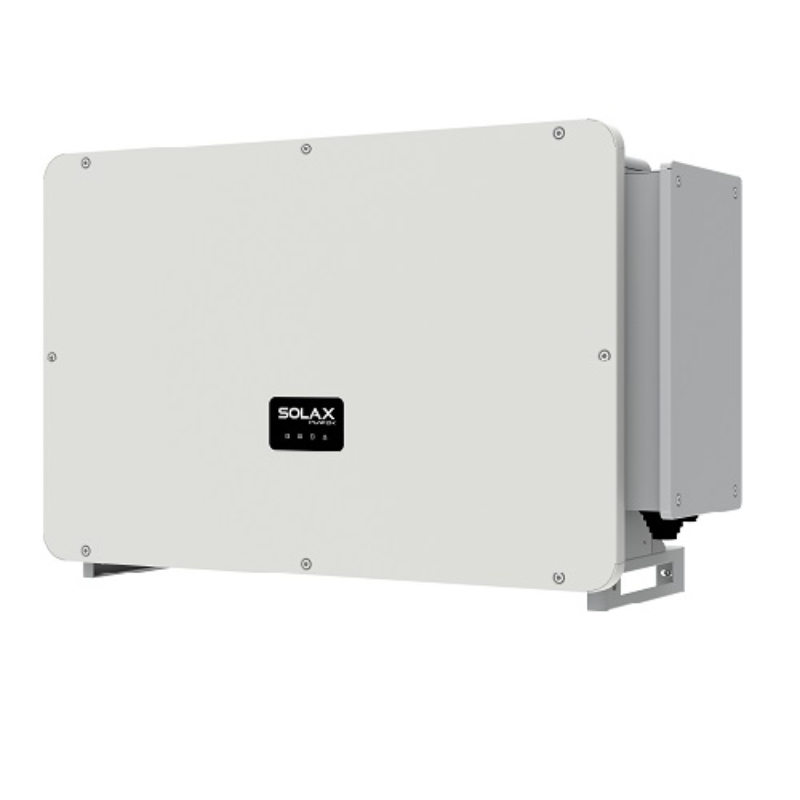

Solax 125kW X3-Forth Inverter Hot on Sale

SolaX have developed the 125kW X3-Forth as a commercial and roof-top scale string inverter with quality, reliability and efficiency and an IP66 protection rating. The X3-Forth features 12 MPPTs, each boasting an ultra-wide 180-1000V voltage range, a maximum Isc current of 46A and 150% PV oversizing, optimising a systems energy harvesting capabilities.

AC attributes

Max power:

125kW

Max current:

200A

Number of phases:

3

DC attributes

Max power

188kW

Max Isc current
MPPT range

46
180-1000V

Max voltage

1000

Start up voltage

200V

System

Max efficiency

98.6%

IP rating

IP66

Weight

87kg

Dimensions

985 x 660 x 327.5mm

Key features

12 MPPTs with high input currentIP66 ProtectionAFCI Protection24 hours operation monitoring
AC and DC Surge Protection
