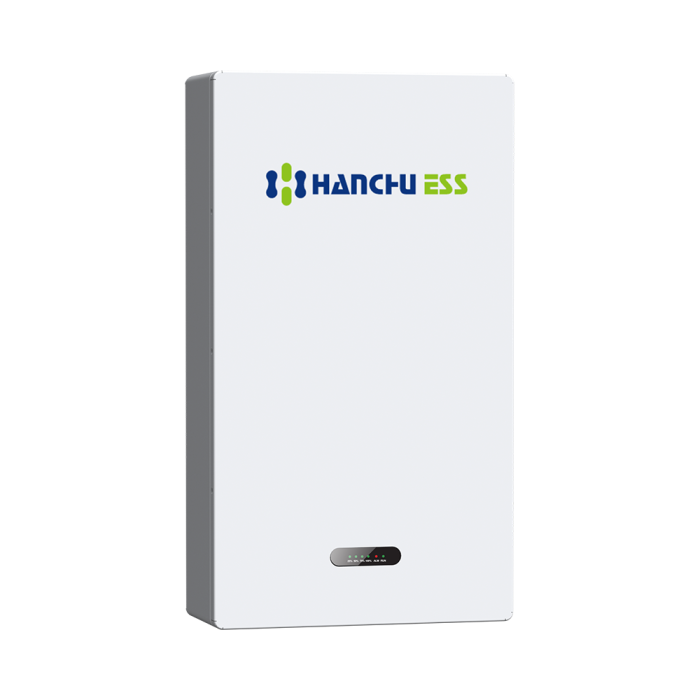

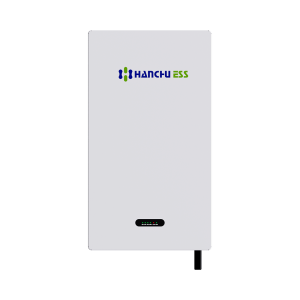

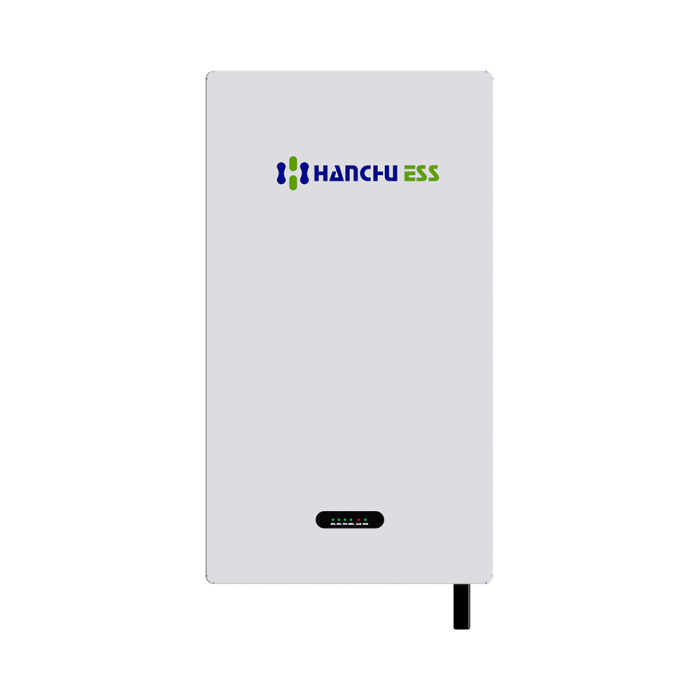

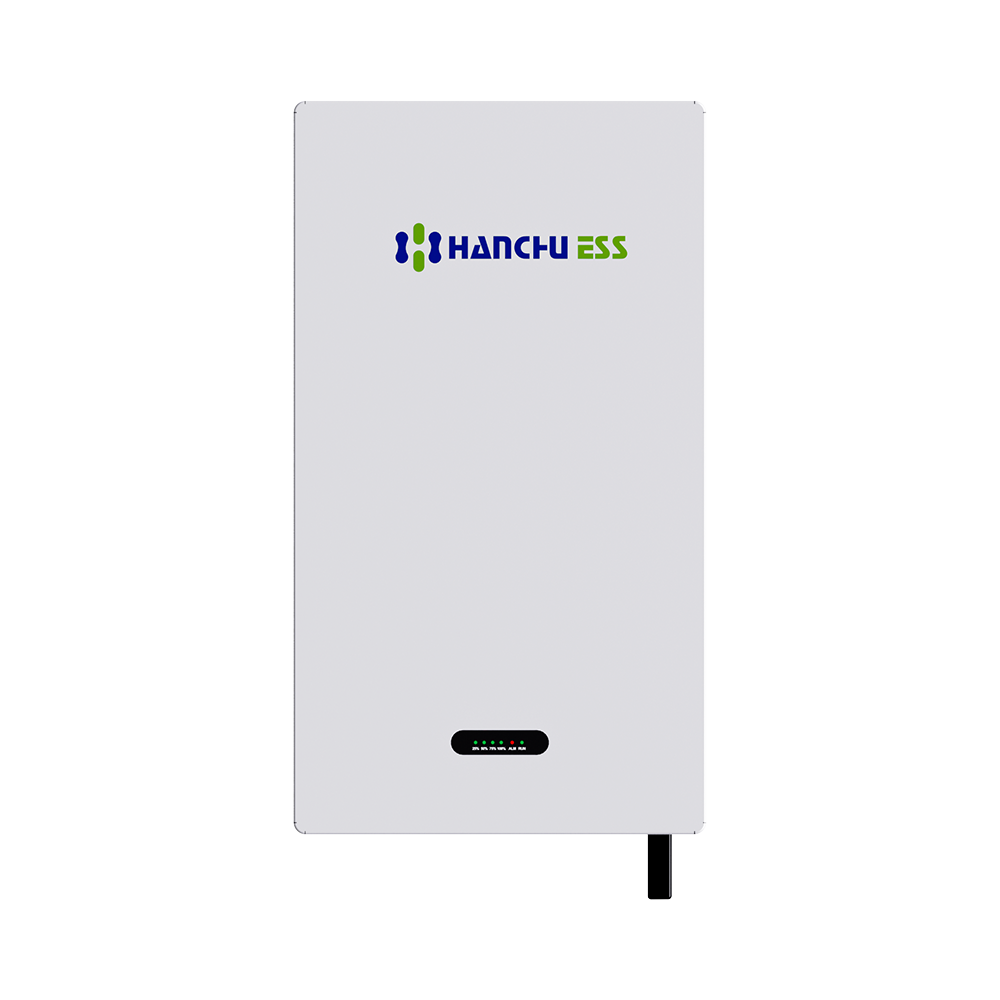

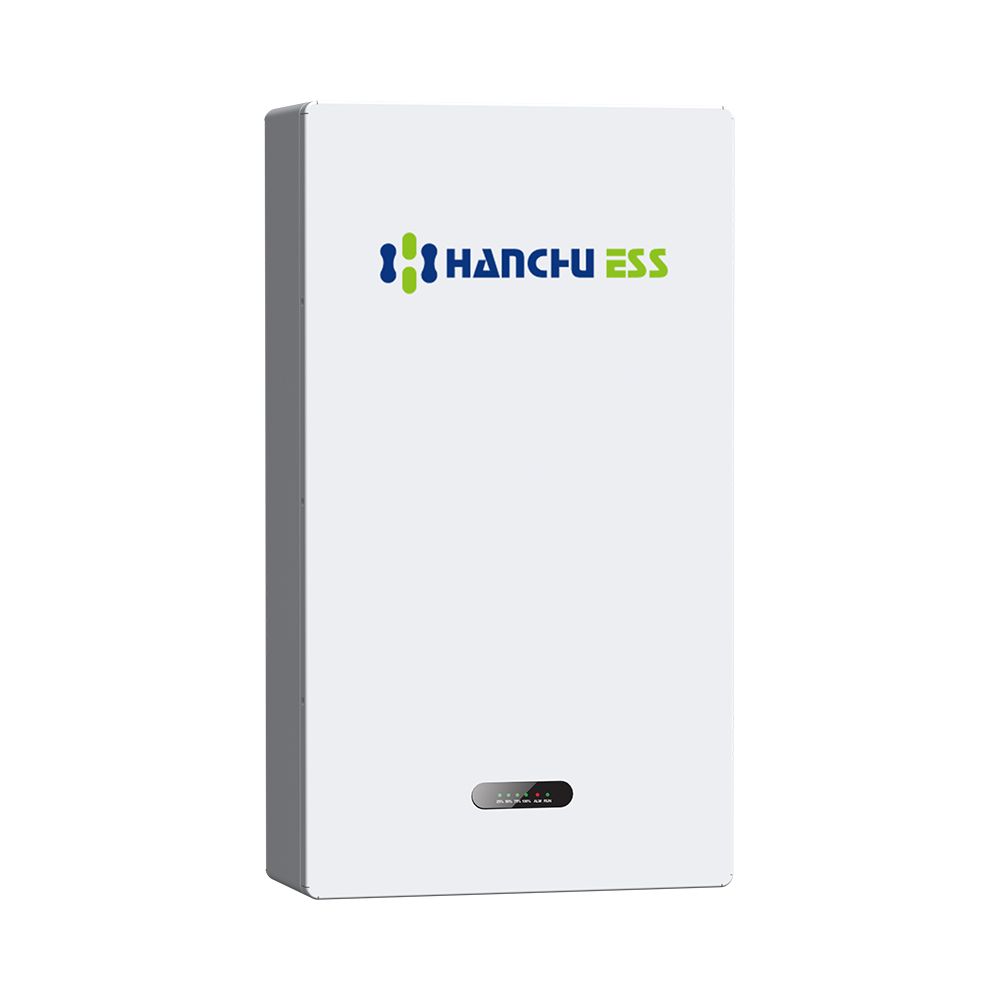

Hanchu Low Voltage Battery 5.12kWh Online Hot Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Compatible Products
Hanchu Single Phase Hybrid Inverter 3.68kW
Hanchu Single Phase Hybrid Inverter 5.0kW
Hanchu Single Phase Hybrid Inverter 6.0kW
Unparalleled Safety
Premium Lithium Iron Phosphate Cells
Features high-quality LFP cells from leading suppliers, designed with advanced safety features at the cell level to ensure maximum reliability and peace of mind.
Built-in Heat Dissipation System
Includes an advanced cooling system to maintain safe battery operation.
Advanced BMS Protection
Equipped with a built-in Battery Management System (BMS) that ensures comprehensive safety through real-time monitoring, fault detection, and lifespan optimisation.
Flexible and Scalable
Compact and Minimalist Design

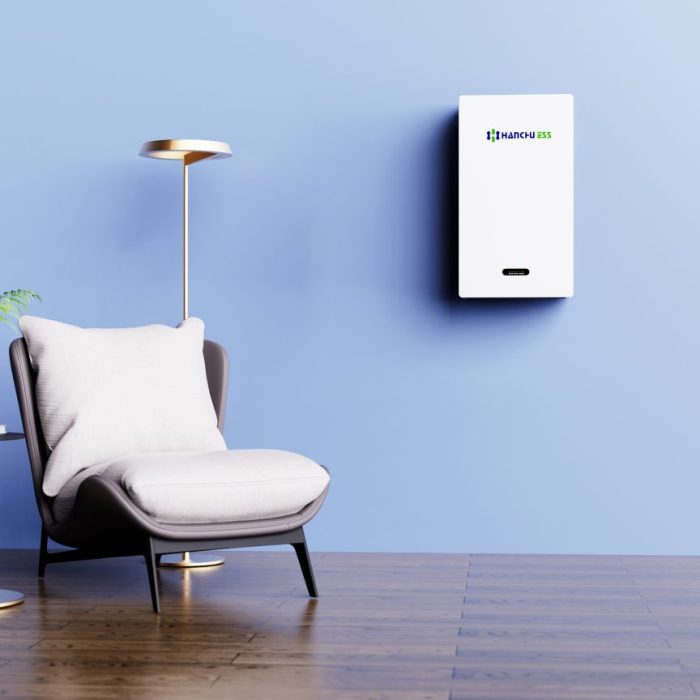

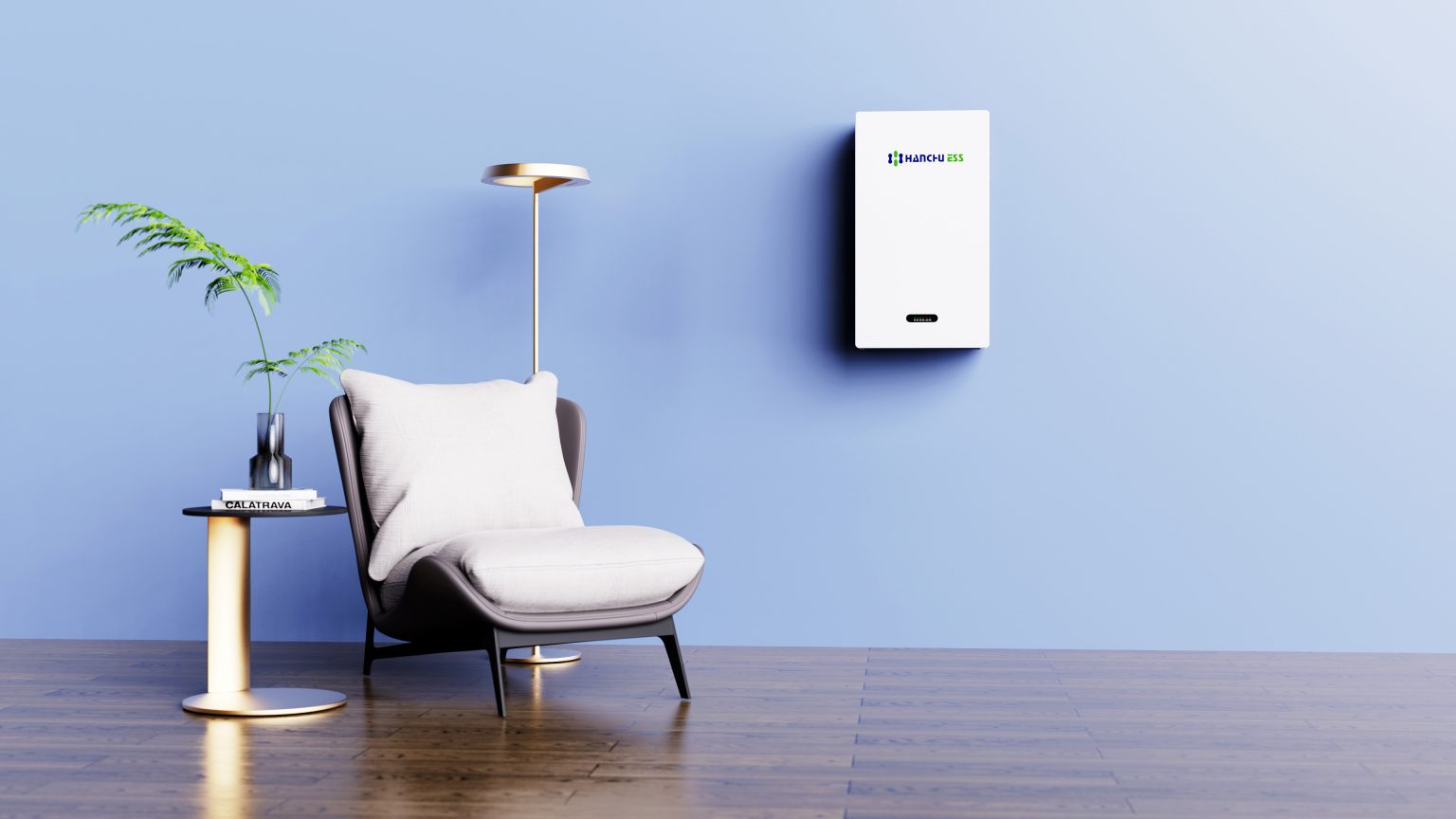

Features a sleek, lightweight design that is smaller and lighter compared to similar products, making it ideal for installation in limited spaces without specific spatial requirements.
Scalability

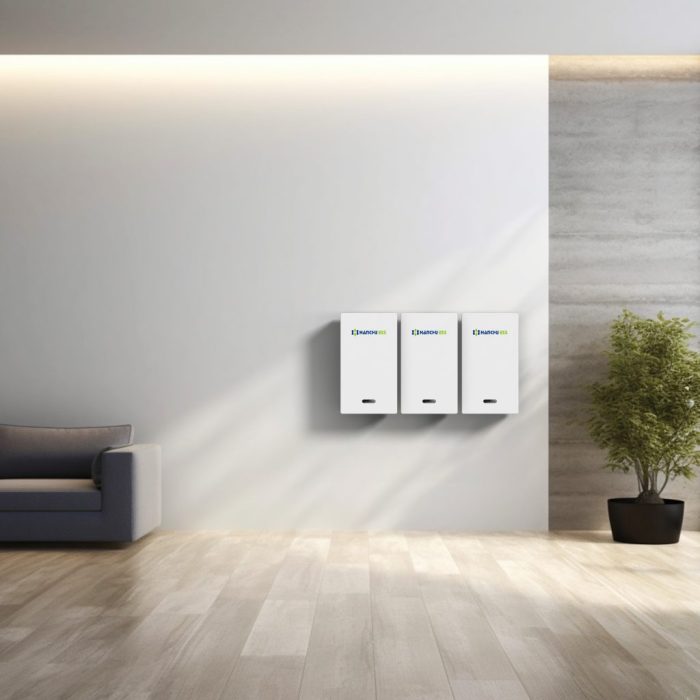

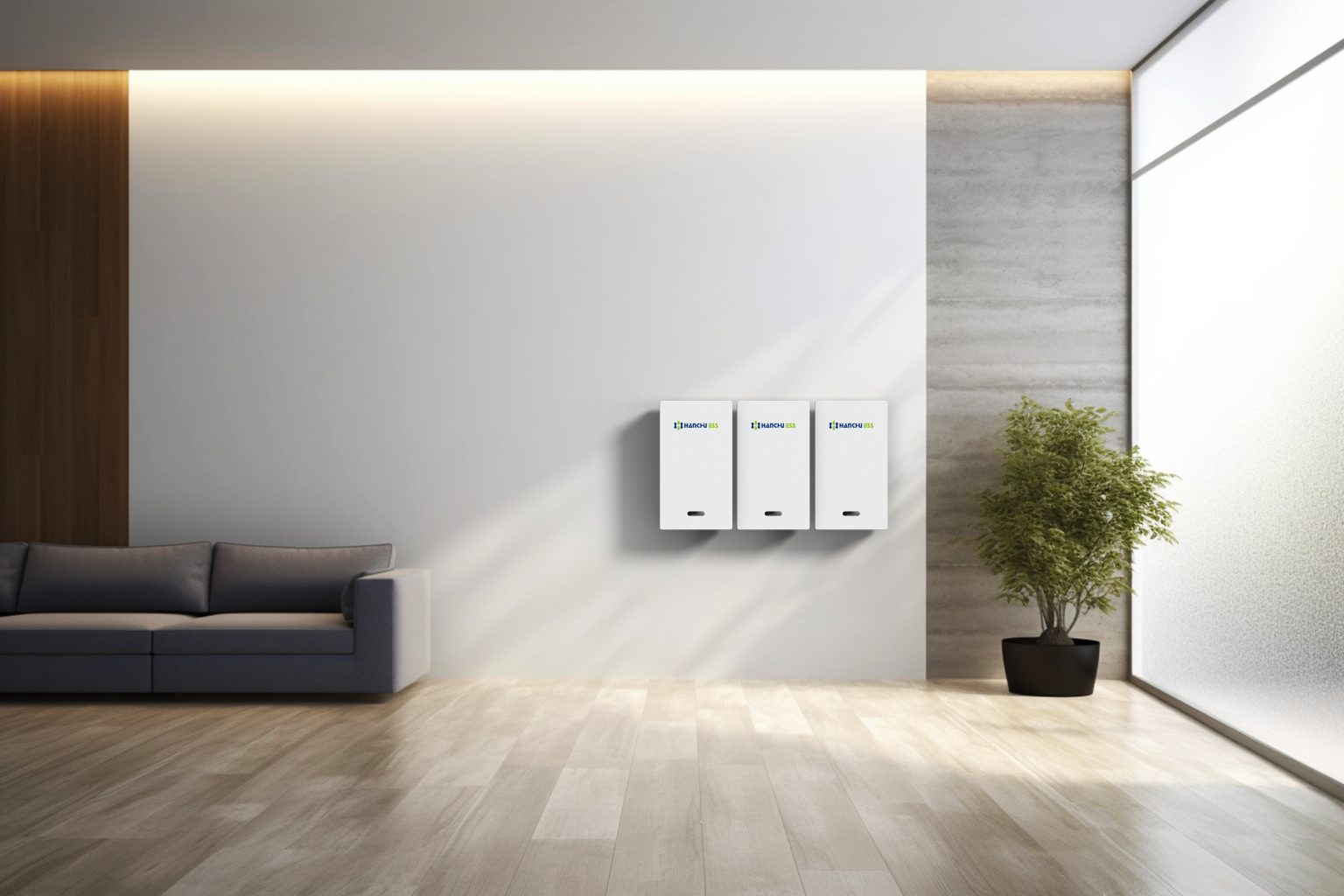

Supports the connection of up to 16 batteries in parallel, meeting a wide range of user requirements and allowing for simple addition of batteries anytime.
Easy and Quick Installation
Features user-friendly designs such as pre-assembled wiring harnesses and quick-connect installation, simplifying the setup process and reducing installation time.
Smart Energy Management (when linked to Hanchu Controller)
Smart Monitoring with iESS:
The intelligent iESS platform continuously monitors battery performance, employing both hardware and software solutions to ensure operational safety and efficiency.
Octopus Tariff Integration:
Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.
Smart Weather Compensation
Automatically adjusts settings in response to weather conditions to maximise energy efficiency.
Â
HANCHU ESS – 5.12KWH LOW VOLTAGE BATTERY – CLICK HERE FOR FEATURES
12 Years Warranty On All Hanchu Products.
All Hanchu products are 12 years warranty with an incredible RMA National service to strengthen the product even more.
Technical Specifications
- Cell Type: LFP
-
- Nominal Energy: 5.12kWh
-
- Maximum Parallel Number: 16
-
- Nominal Voltage: 51.2V
-
- Operating Voltage Range: 43.2-57.6V
-
- Dimension (W*D*H) (mm): 338 * 138.5 * 600
-
- Weight: 46.5Kg
-
- Charging Temperature: From 0 to 50℃
-
- Discharging Temperature: From -10 to 60℃
-
- Depth of Discharge: 95% DoD
-
- Nominal Charge: 100A
-
- Discharge Current: 100A
-
- Ingress Protection Degree: IP54
-
- Cooling Type: Natural convection
-
- Humidity: ≤95%
-
- Communication: CAN RS485 WiFi Bluetooth
-
- Battery Safety: IEC 62619 CE
-
- Transportation Certification: UN38.3
-
- Warranty: 12 years
-
